APARATE DE AER CONDITIONAT CU TUBULATURA - pompa de caldura
|
Unitatea Externa
|
|
Ansamblu
|

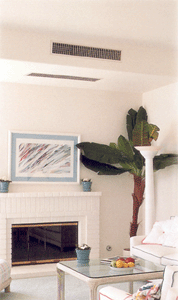

Unitatea Interna
|
[1] [2]
| Unitate Interna | PEAD-P1,6 | PEAD-P2 | PEAD-P2,5 | PEAD-P3 |
| Unitate Externa | PUH-P1,6 | PUH-P2 | PUH-P2,5 | PUH-P3 |
| Capacitate Racire | 4.5 KW | 5.5 KW | 6.7 KW | 7.7 KW |
| Capacitate Incalzire | 4.9 KW | 6.2 KW | 7.2 KW | 9.1 KW |
| Consum Incalzire | 1.9 KW | 2.4 KW | 2.7 KW | 3.5 KW |
| Consum Racire | 1.7 KW | 2.4 KW | 2.65 KW | 3.4 KW |
| Debit Aer Interior | 660/840 | 810/1020 | 1020/1260 | 1200/1500 |
| Dimensiune Unit. Int. | 935/700/295 mm | 935/700/295 mm | 1175/700/295 mm | 1175/740/325 mm |
| Dimensiune Unit. Ext. | 900/350/650 mm | 900/350/855 mm | 900/350/855 mm | 900/350/855 mm |
| Nivel Zgomot Unit. Int. | 34/38 dB | 36/40 dB | 37/41 dB | 37/41 dB |
| Nivel Zgomot Unit. Ext. | 46 dB | 48 dB | 48 dB | 49 dB |
|
|
|
